chintCHS320-CT
CHS320-CT Three Phase MD / CT Meter (Indirect Connection)
CT-input MD meter for high-load three-phase commercial and industrial revenue points.
- 3P4W indirect (CT) connection — 3 × 57.7 / 100V
- Ib 1 or 5A CT secondary; Imax 6 or 10A CT secondary
- Class 1 active / Class 2 reactive accuracy, IEC + EN compliant
- Maximum Demand on programmable 5–60 min intervals
- DLMS/COSEM over G3-PLC, GPRS, 4G or Wi-SUN
meteringthree-phasect-ratedmaximum-demandindustrialdlmscosem
CHINT certified
Local support
In stock or short lead time
Overview
The CHINT CHS320-CT is the indirect-connection variant of the CHS320 platform — wired through external current transformers for revenue measurement on high-load three-phase services where direct connection is impractical. It accepts 3 × 57.7 / 100V phase-to-neutral and 1A or 5A CT secondaries, logs Maximum Demand on programmable 5–60 minute intervals, and exposes Time-of-Use tariffs with up to 4 rates and 8 day tables. Optional G3-PLC / 4G / Wi-SUN modules and DLMS/COSEM make it AMI-ready. Available through Chint Uganda.
Related products
chint·CHD130
CHD130 Single Phase DIN-Rail Meter
metering
meteringdin-railsingle-phase
chint·CHS120-P
CHS120-P Single Phase Smart Prepaid Meter
metering
meteringprepaidsts
chint·CHS320

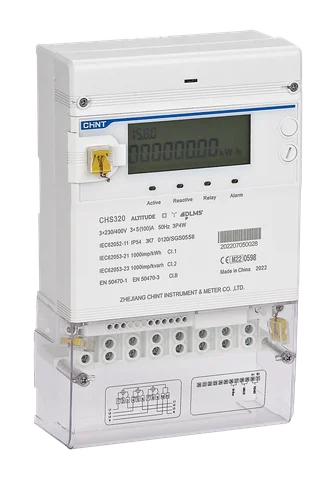

CHS320 Three Phase Smart Meter
metering
meteringthree-phasecommercial
chint·CHS390

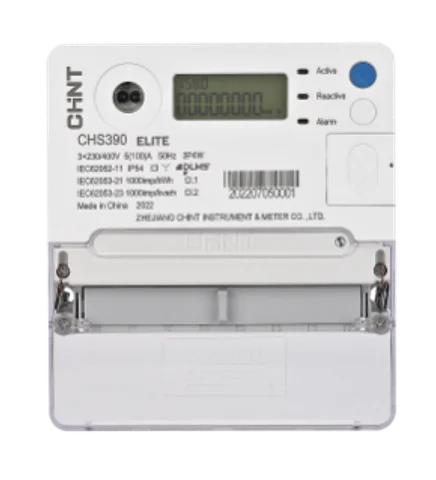

CHS390 Three Phase Smart Meter
