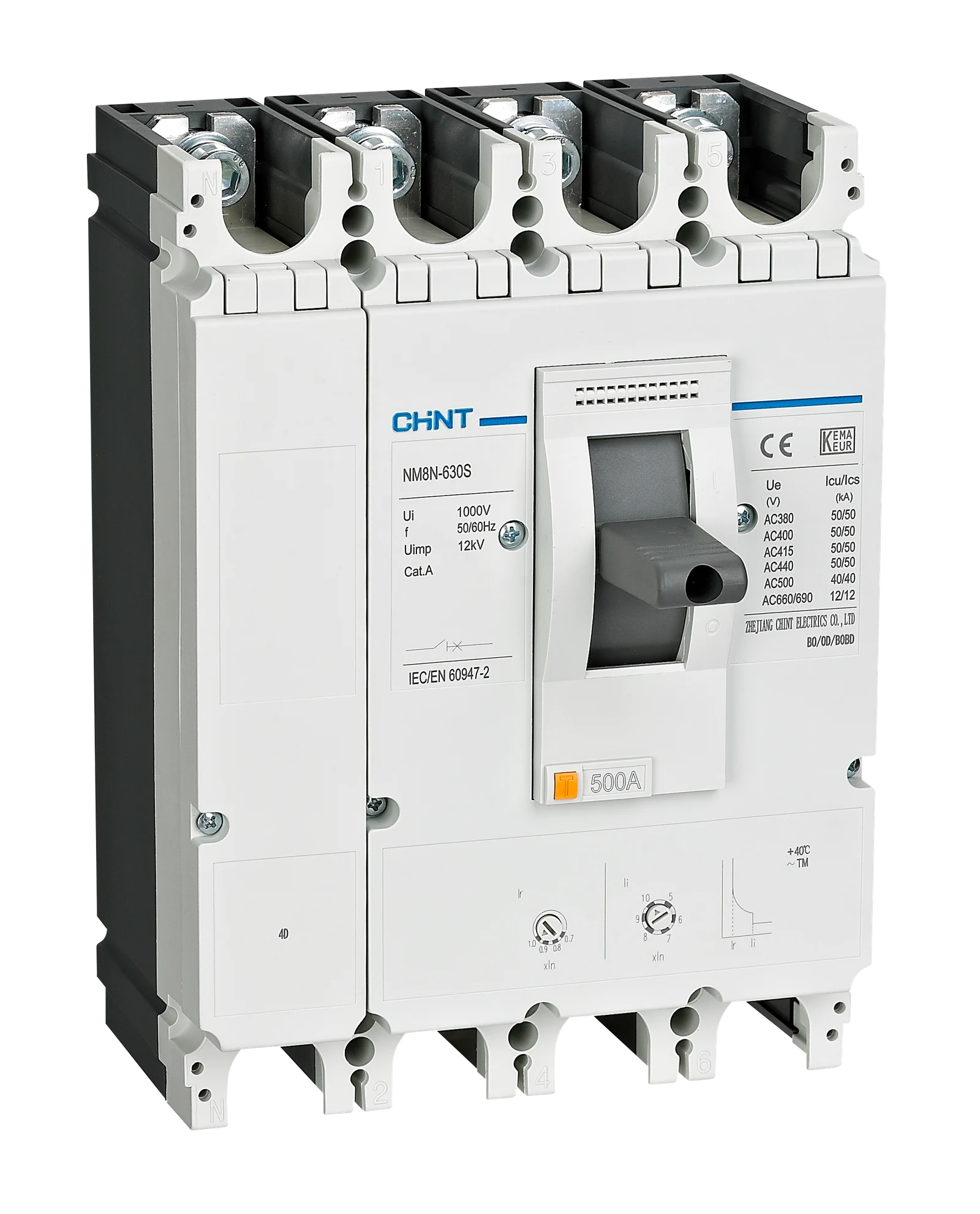

CHINT NM8N Moulded Case Circuit Breaker
Modular MCCB for AC and DC low-voltage distribution — 16 A to 1600 A, breaking capacity up to 150 kA at 415 V.
- Rated current (In): 16 A – 1600 A across six frame sizes
- Rated insulation voltage (Ui): 1000 V; impulse withstand (Uimp): 8 kV (≤250 A) / 12 kV (400–1600 A)
- Breaking capacity (Icu): up to 150 kA at 415 V; 50 kA at 380–415 V on the S frame
- Utilisation category A; IEC/EN 60947-2
- Trip units: thermal-magnetic (TM) or electronic, fixed or adjustable
Overview
The CHINT NM8N Moulded Case Circuit Breaker is the current-generation NM8 family, designed for AC and DC low-voltage distribution systems up to 690 V AC and 1000 V DC. It provides protection against overload, short-circuit, and undervoltage faults, with thermal-magnetic or electronic trip units across a wide rated-current range from 16 A to 1600 A. Multiple frame sizes (125 / 250 / 400 / 630 / 800 / 1600) cover everything from secondary distribution boards to main incomers, and the modular accessory system supports auxiliary contacts, alarm contacts, shunt trip, undervoltage release, motor operator, plug-in and withdrawable bases. Built to IEC/EN 60947-2 and certified by KEMA, TUV, CE, CB, EAC, IMQ. Source: chintglobal.com NM8N product page.
